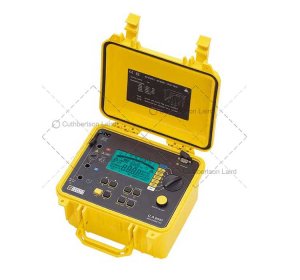

Chauvin Arnoux CA6547 Megohmmeter

5kV Insulation Tester
With its multiple functions, it'll not only qualify the insulation measured, but also ensure genuine preventive maintenance

Ideal for insulation measurement on cables, motors, generators, transformers….

Chauvin Part No: P01139702

In its site-proof case, the CA6547 megohmmeter can be used for quantitative and qualitative analysis of insulation. It also automatically measures voltage, capacitance and residual current.

In addition, this model offers memorisation of measurements and an RS232 link for controlling the instrument and processing the data using computer software.

Chauvin Arnoux CA6547 Megohmmeter Features

  • Wide range from 30kΩ to 10TΩ.
  • 4 fixed test voltages: 500 / 1000 / 2500 and 5000V.
  • Programmable: from 40V to 5100V in increments of 10V or 100V.
  • Capacitance: 0.001 to 49.99 F.
  • Leakage current: 0.000 nA to 3,000 A.
  • Automatic calculation of DAR, PI & DD (dielectric discharge) ratios.
  • Capacitance: 0.001 to 49.99 F.
  • Memorisation of several thousand measurements.
  • RS 232 connector for link-up to a PC.
  • Display: Giant LCD with backlight.
  • Meets IEC 61010-1 CAT III 1000V or CAT I 2500V & 61557.
  • Power supply: Rechargeable NiMH battery.
  • Battery life: 30 days with 10 DARs and 5 PIs / day.
  • Dimensions: 270 x 250 x 180 mm.
  • Weight: 4.3 kg.
  • Chauvin C.A6547 Warranty: 1 year.

Included Accessories:

Tool bag containing, mains lead, 3 safety leads with HV croc clips, HV pick up lead, handbook, RS232 connector & Megohmview software.
