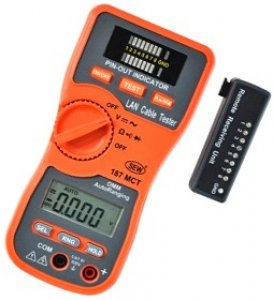

● Designed for RJ45/RJ11 modular cables, 10/100 base-T cable and Token Ring cable etc. ● The LAN cable tester can verify cable continuity, open, circuit and miss-wired. ● The remote receiving unit is available for installed cables far away either on the wall plates or on the patch panels. ● Auto and manual scan function. ● Ground wire test. ● Display : LED indication for wire status.
● 4000 counts LCD. ● Full automatic measurement. Voltage measurement. Resistor measurement. ● Range change function. ● Select function. ● Data Hold function. ● Continuity check. ● Diode measurement. ● Low battery indication. ● Input impedance:10MΩ.
Less than 25Ω
Operating temperature & humidity
0°C ~ 40°C, 80% Max.
Storage temperature & humidity
-10°C~50°C, 80% Max.
Master unit : 168(L) x 82(W) x 44(D)mm Remote receiving unit : 74(L) x 30 (W) x 25(D)mm
Weight (battery included)
Master unit : Approx. 283g Remote receiving unit : Approx. 30g
LAN cable tester : 9V battery x 1 DMM : 1.5V(AAA) x 2
EN 61010-1 CAT Ⅲ 600V EN 61326-1 EN 55011 EN 61000-4-2 EN 61000-4-3
