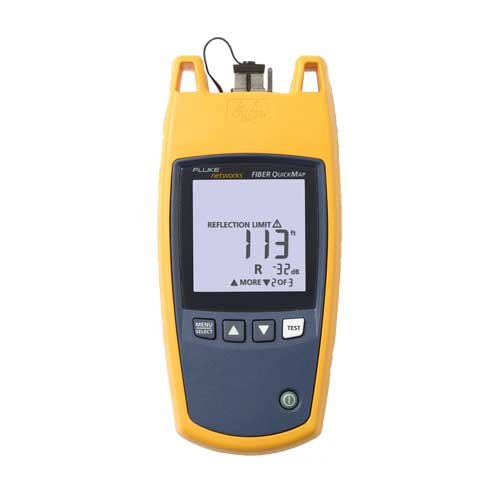

Fluke Networks FQM-MAIN Fiber QuickMap

The Fluke Networks FQM-MAIN Fiber QuickMap is a new category of enterprise fiber troubleshooter that leapfrogs the limited capability troubleshooters currently on the market, the Fiber QuickMap quickly and efficiently locates connections and breaks in multimode fiber with the press of one-button. By instantly (six second typical test time) providing distances to failures such as high loss and high reflectance incidents, it is the must-have troubleshooter for any technician who works with fiber in datacenters.

Fluke Networks FQM-MAIN Specification
Operating temperature
(with the battery)
0ºC to 50ºC
Non-operating temperature -20ºC to 60ºC
Operating relative humidity (without condensation) 95% (10ºC to 35ºC)
75% (35ºC to 40ºC)
uncontrolled <10ºC
Vibration Random, 5 Hz to 500 Hz,
MIL-PRF-28800F CLASS 2
Shock 1 meter drop test
Altitude 9,842 feet/3,000 metres
EMC EN 61326-1:2004
Battery type 2 AA alkaline batteries (no battery charger)
Battery life 1,500 tests (typical)
Laser safety Class 1 CDRH
Complies to EN 60825-2
LCD type Backlit black and white (segments)
Index of refraction range 1.45 to 1.5 (factory default is 1.468)
Auto turn off Automatically turns off after 5 minutes if no keys are pressed.
Factory calibration interval None
Output wavelengths 850 nm ± 10 nm
Laser classification Class 1 CDRH Complies to EN 60825-2
Dynamic range >11 dB
Maximum distance 1500 meters or 4921 feet
Distance Accuracy ± (1 m + 0.1% x length) for reflective incidents 1
± (3 m + 0.1% x length) for non-reflective incidents2
Testing speed <  6 seconds typical
Connector Removable/cleanable SC adapter, UPC polish
Fiber types tested 50/125 μm or 62.5/125 μm multimode
Detection of reflective incidents 3 -35 dB default threshold (User selectable: -20 dB to 5 dB increments)
Reflectance accuracy 4 ± 4 dB
Maximum reflectance measurement -20 dB
Detection of loss incidents5 0.70 dB default threshold (user-configurable from 0.5 dB to 6.1 dB in 0.2 dB increments)
Bulkhead quality If no fiber is attached or if the connector is dirty, the troubleshooter displays 0 m or 0 ft.
Live fiber detection Detects optical signals from 600 nm to 1050 nm and shows ACTIVE LINE if a signal is there. Looks for a signal every 3 seconds after the first detection. +7 dB maximum input power.
Certifications and compliance Conforms to relevant European Union directives
Conforms to relevant Australian standards
Listed by the Canadian Standards Association CSA C22.2 No. 61010.1.04
Conforms to FCC Rules, Part A
1. ± user-configurable Index of Refraction (IOR) error ± the incident location error. Incident location error for reflective incidents: ±1 m from 1 m to 1.5 km.
2. ± user-configurable Index of Refraction (IOR) error ± the incident location error. Incident location error for non-reflective incidents: ±2 m for lengths ≤15 m, otherwise ±1 m.
3. Finds and gives the location of an incident that has a reflectance larger than -55 dB. Detects incidents >1m after the bulkhead connector when the bulkhead reflectance is <35 dB. Detects incidents >3 m after an incident when the incident reflectance is <35 dB.
4. With a backscatter coefficient of -63 dB at 850 nm using a calibrated -14 dB reference
5. Detects incidents >10 m after the bulkhead connector or any prior incident when the bulkhead reflectance is <-35 dB and the reflectance of any prior incident is <-35 dB. The maximum link loss prior to the incident is <7 dB.
