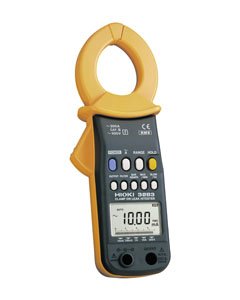

Hioki Clamp on Leak HiTester 3283

1mA to 200A AC Leakage Current Clamp Meter with 10 µA Resolution to Analyze Distorted Waveforms

• True RMS
• AC leak current and load current testing
• 10 mA leak current range with 10 µA resolution
• Load current up to 200 A

• Measure leakage current with absolute certainty using highly sensitive 10 μA resolution (at 10.00 mA range)
• Display 50/60 Hz leak current components using filtering function
• Monitor the leak current condition in combination with a Hioki Memory HiCorder (using monitor output)

■ Basic specifications (Accuracy guaranteed for 1 year, or opening and closing of the clamp sensor 10,000 times)

AC current 10.00m/ 100.0m/ 1.000/ 10.00/ 200.0 A, 5 ranges, (40 Hz to 2 kHz, True RMS), Basic accuracy: ±1.0 % rdg. ±5 dgt.
AC voltage N/A
Frequency 30.0 Hz to 1000 Hz, 2 ranges, Basic accuracy: ±0.3 % rdg. ±1 dgt.
Crest factor 2.5 or less (1.5 at 200 A range)
Filter function Cut off frequency at filter ON: 180 Hz (-3dB)
Output REC output for current: DC 1 V/f.s. (2 V/f.s. at only 200 A range), response time: less than 200 ms.
MON output for current: AC 1 V/f.s. (2 V/f.s. at only 200 A range), 5 Hz to 15 kHz frequency bandwidth (-3 dB)
Other functions Max./ Min./ Average value record, Data hold, Auto power off
Display LCD, max. 2000 dgt., Display refresh rate: 4 times/s (FAST), 1 time/3 s (SLOW), 4 times/s (bar graph)
Power supply 6F22 (Stacked manganese battery) ×1, Continuous use: 40 hours, or AC adapter 9445-02/-03
Core jaw dia. φ 40 mm (1.57 in)
Dimensions and mass 62 mm (2.44 in) W × 225 mm (8.86 in) H × 39 mm (1.54 in) D,
400 g (14.1 oz)
Accessories Carrying Case 9399 ×1, Hand strap ×1, Stacked manganese battery (6F22) ×1, Instruction manual ×1
