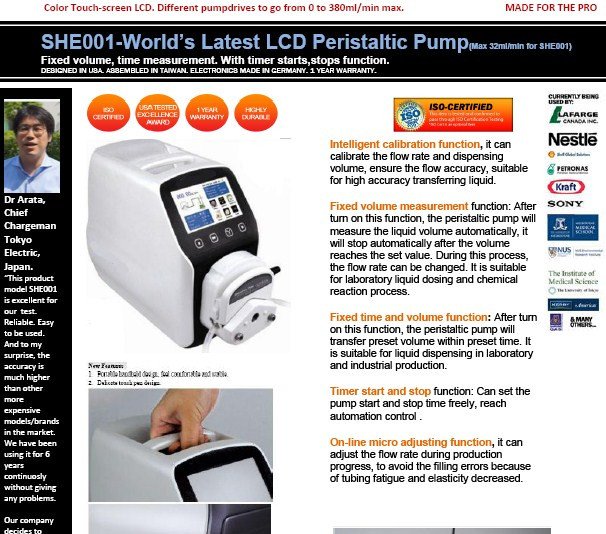

FEATURES:
1. Imported 4.3 inch - industrial grade - true color LCD screen , clear picture quality. Dynamic display real-time working status. The flow rate, motor speed, setting parameters and system configuration display in the same screen.
2. Importedtouch screencontrol, high hardness, resisting scratch, high sensitivity, attention to users experience.
3. Stepper motor drive, control precisely.
4. Shenchen-V-CIR circuit systemall use imported chips, computing fast, reliable performance, working stable.
5. Shenchen-V-EMB operation system, embedded software design, powerful function, friendly interface, attention to users’ experience.
6. Intelligent calibrationfunction, it can calibrate the flow rate and dispensing volume, ensure the flow accuracy, suitable for high accuracy transferring liquid.
7. Fixed volume measurementfunction: After turn on this function, the peristaltic pump will measure the liquid volume automatically, it will stop automatically after the volume reaches the set value. During this process, the flow rate can be changed. It is suitable for laboratory liquid dosing and chemical reaction process.
8. Fixed time and volumefunction: After turn on this function, the peristaltic pump will transfer preset volume within preset time. It is suitable for liquid dispensing in laboratory and industrial production.

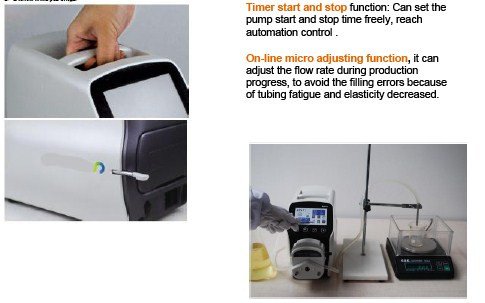

9. Timer start and stopfunction: Can set the pump start and stop time freely, reach automation control .
10. On-line micro adjusting function, it can adjust the flow rate during production progress, to avoid the filling errors because of tubing fatigue and elasticity decreased.
11. Unique accurate angle controltechnology, achieve high accuracy dispensing and dosing.
12. Fast filling function can wash the tubing and also fill fluid into the tubing.
13. Power down memory function, store the running parameters in time, safe and reliable.
14. Automatical temperature control system, reduce the noise of fan effectively.
15. Strong anti-jamming feature, wide voltage design, suitable for complex power supply environment .
16. Circuit board spray with three paint, anti-dust, anti-moisture, anti-static, resist corrosion.
Technical Specification:
Flow rate | 0.000067-380ml/min |
Speed range | 0.1-100 rpm |
Speed resolution | 0.01 rpm |
Flow rate resolution | 0.01μL |
Flow rate accuracy | <±0.5% |
Bac suction angle | 0-360℃ |
Outlet pressure | 0.1Mpa(0.86-1.0mm wall thickness tubing);0.1~0.27Mpa(1.6-2.mm wall thickness tubing |
Motor type | Stepper motor |
Circuit system | Shenchen-LabV-CIR |
Operation system | Shenchen-LabV-EMB |
Display | 4.3 inch-industruak grade-True color LCD screen |
Control method | Touch screen amd membrance keypad |
Power supply |
220V ±10% 50Hz/60Hz (standard) 110V ±10% 50Hz/60Hz (optional) |
Drivdimension (L x W x H) | 219.6×152×211.6 (L×W×H) |
Weight | 4.20kg |
Power consumption | <50W |
condition temperature | 0-40℃ |
Relative humidity | <80% |
IP rate | IP31 |
Drive |
Speed Range |
Pump Head |
Tubing Size |
Flow Rate ( mL/min) |
SHE SERIES |
0.1-100rpm |
SHE-YZ1515x |
13#,14#,19#, 16#,25#,17#, 18# |
0.007~380 |
SHE-YZ2515x |
15#, 24# |
0.17~290 |
||
SHE001- |
ID:0.13-3.17mm, Wall thickness: 0.8-1.0mm |
0.000067-32 |
||
SHE-SN25/15 |
14#, 16#, 25# |
0.024-375 |
