Color 320x240 Pixels Display A-Scan Snapshot
Echo-Echo Mode(Thru Paint & Coatings)
Stores 100,000 Readings
Gain: Low, Medium or High for varying test conditions
Measurements from one side

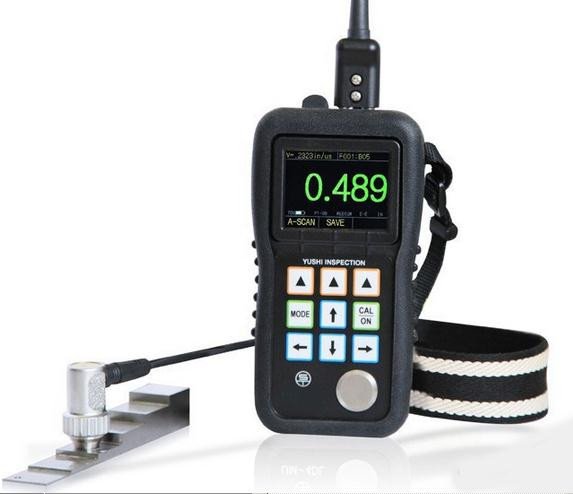

Ultra-sonic thickness gauges make instant digital measurements by transmitting sound into a material from one side, making it unnecessary to cut the corroded part.
Lightweight and pocket-size
These handheld gages are small enough to fit in a toolbox or inside your pocket. They are ideal for quick inspections in hard-to-reach areas.
Main Functions |
TMT101A (THIS MODEL) |
TM101B(future model) |
A Scan Snapshot |
YES |
YES |
Thru-paint function |
YES |
YES |
Data Logger(100 000 sets of data,1000 pictures) /DataView Software |
NA |
YES |
Standard Probe |
Penetration probe TC-510 |
Penetration probe TC-510 |
Color-coded keypad
You can directly access many important measurement features for time-saving operation. Strategically located keys are grouped together by color for easy operation.
Large OLED display
The large numerals make it easy to read thickness measurements.
SPECIFICATION:
Thickness range: 0.6 mm - 508 mm, ( 0.008 - 20 inches ),depending on material, temperature and transducer selection
Material Velocity Calibration Range: 500 - 9999 m/s (0.0197 - 0.3937 in/uS )
Battery type: 2 "AA" Alkaline
Battery life: Up to 35 hours
Color Display: 320x240 pixels, 2.4” high resolution OLED display
Display contrast: 10000:1
Information displays: LOS, min, max, large reading while displaying min at the same time, velocity, zero, calibration, units, freeze, unfreeze, % battery life remaining, gain - low, std, high, echo to echo symbol
Resolution: 0.01 or 1mm . (0. 001" or 0.01”)
Units: English/Metric
Gain: Low, Standard and High for varying test conditions
Measurement rate: 4, 8, 16 Hz refresh
Differential Mode: Displays the difference from the actual thickness measurement and a user entered reference value
Alarms: Minimum/Maximum depth, beeps and display flashes as well as keypad illumination
Shut off: Manual or Auto, time out (user programmable from 5,10,20 minutes)
Fast Scan Min/Max mode: Displays minimum or maximum thickness value
Freeze mode: Freezes display to hold onto last reading
Scan mode: Displays minimum or maximum thickness value
Differential Mode: Displays the difference from the actual thickness measurement and a user entered reference value
Alarms: Minimum/Maximum depth
Keypad: Color Illuminate, easy setup and operate
Waveform: Color A-scan Waveform display
Gain Adjust: low, medium and high variable adjustment of gain
Rectification Modes: A-San Shot
Echo to Echo: Measures the metal thickness only (ignore paint and coatings)
Data logger: 100,000 thickness data logger with ID point in linear or grid files ( 400 files)
Output: USB 2.0 full speed connector. Data View report software
Size: 153mm (L) x76mm (W) x 37mm (H)
Weight: 280 g
Temperature: Gage Operating: -10° C to 50° C
Standard Package includes:
Ultrasonic thickness gage
- 5MHz, 10 mm diameter transducer
- operational manual,
- probe cable,
- couplant ,
- certificate,
- hard carrying case
Warranty: 1 year warranty on parts and labor
Optional Accessories:
Several selectable probes; test block; leather case; couplants and high temperature couplant
Probe optional for ultrasonic thickness gauge:
Model |
|
Freq. MHz |
Diam. Min. |
Measuring range |
Lower limit |
Description |
TMT910A |
|
2 |
14 |
3.0mm-300.0mm (in steel) |
20mm |
For thick, highly attenuating, or highly scattering materials |
TMT910B |
|
5 |
10 |
1.2mm-230.0mm (in steel) |
¢20mm×3.0mm |
Normal measurement |
TMT910C |
|
5 |
10 |
1.2mm-230.0mm (in steel) |
¢20mm×3.0mm |
Normal measurement |
TMT910D |
|
7 |
6 |
0.75mm-80.0mm (in steel) |
¢15mm×2.0mm |
For thin pipe or small curvature pipe wall thickness measurement |
TMT910E |
|
5 |
2 |
3mm-200mm (in steel) |
30mm |
For high temperature measurement (up to 300℃) |
