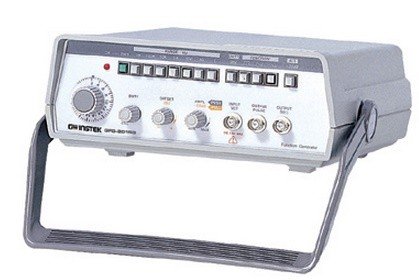

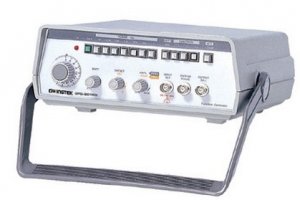

GW INSTEK GFG-8015G

Features

*Frequency Range : 0.2Hz ~ 2MHz
*Waveform : Sine, Triangle, Square, TTL Pulse
*Variable DC Offset Control
*Output Overload Protection
*VCF Input Function
*1000 : 1 Tuning Range

Specification:

MAIN OUTPUT

Waveforms SINE, TRIANGLE, RAMP, SQUARE, and TTL pulse output
Amplitude >20Vp-p (open circuit )
>10Vp-p (into 50Ω load)
Impedance 50Ω±10%
Attenuator -20dB, -20dB±1.0dB (at 1kHz)
DC Offset <-10V to >+10V (<-5V to >+5V into 50Ω load)
Duty Control 1:1 to 10:1 Continuously rating
Frequency Range 0.2Hz to 2MHz 7 ranges
Range Accuracy ±5% + 1Hz (0.2, 2.0 position)

SINE WAVE

Distortion <1%, 0.2Hz to 200kHz
Flatness Response < 0.1dB, 0.2Hz to 100kHz
< 0.5dB, 100kHz to 2MHz

TRIANGLE WAVE

Linear 98%, 0.2Hz to 100kHz
95%, 100kHz to 2MHz

SQUARE WAVE

Symmetry <2%, 0.2Hz to 100kHz
Rise / Fall Time <100nS

TTL OUTPUT

Level

> 3Vpp
Rise / Fall Time < 25nS

  1.
Input Voltage Approx. 0V to 10V(±1V) input for 1000:1 frequency ratio
Impedance 10kΩ (±10%)
POWER SOURCE
  AC100V/120V/220V/230V±10%, 50/60Hz

ACCESSORIES

  User manual x 1
Power cord x 1
Test lead GTL-101 x 1
DIMENSIONS & WEIGHT
  230(W) x 95(H) x 280(D)mm
Approx. 2.0 kg

Accessories:

User manual x1, Power cord x1, Test lead GTL-101 x1

Ordering Information :

GFG-8015G 2MHz Function Generator
