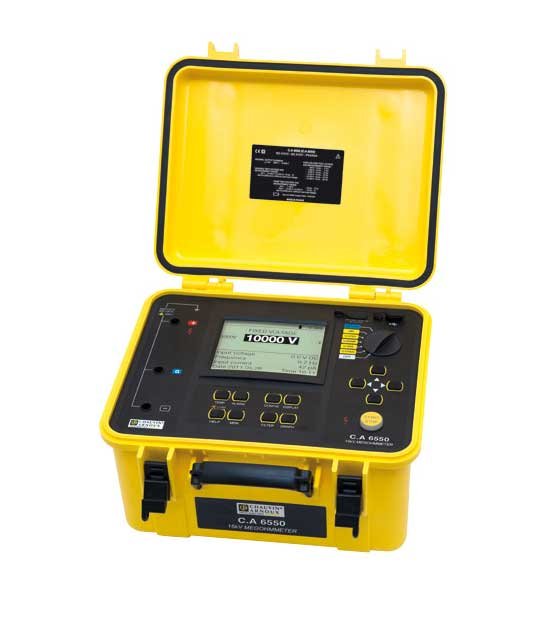

Chauvin Arnoux C.A6550 10kV Tester

10 kV Insulation Tester
The CA6550 is ideal for use on rotating equipment and machinery operating at 12 kV or even higher

An ideal tester for electricity companies, manufacturers, installers, maintenance firms, industry, R&D centres and infrastructure.

Chauvin Part No: P01139705


With its site-proof casing, the Chauvin Arnoux CA6550 insulation tester is used to check equipment insulation during manufacturing, on-site installation work, periodic inspections and recommissioning of installations.

Specially adapted for checking insulation on rotating machinery with a 12 kV power supply or higher, the CA6550 complies with the IEEE43 standard which recommends insulation testing at 5-10kV.

Chauvin Arnoux C.A6550 10kV Tester Features

  • Fixed Test Voltage: 500V, 1,000V, 2,500V, 5,000V & 10,000V.
  • Variable Test Voltage: 40V - 10,000V - 3 presettable voltage values.
  • Ramp mode: 3 presettable ramps: start voltage / end voltage / duration.
  • Discharge after test: Automatic.
  • Timer: Up to 99 minutes 59 seconds.
  • Automatic calculation: DAR / PI / DD /ppm/V ratios.
  • Measurement display: 3 filters with 3 possible time-constant.
  • Programmable alarms: An alarm threshold can be memorised.
  • Storage: 256 recordings, 80,000 points: R, U, I and date.
  • Communication: Optically-isolated port for USB and RS232 links.
  • PC software: DataView.
  • Power supply: NiMH rechargeable batteries.
  • Battery charging: Battery charging possible while performing insulation measurements.
  • Electrical safety: 1,000V CAT IV - IEC 61010-1 and IEC 61557.
  • Dimensions: 340 x 300 x 200 mm.
  • Weight: 6.2 kg approx. (excluding accessories).
  • Chauvin Arnoux C.A 6550 Warranty: 1 year.

Included Accessories:

Bag with 2 safety leads 3 m long equipped with an HV plug at each end (red / blue), 1 guard test lead 3 m long equipped with an HV plug at one end and an HV plug with rear connection at the other end (black), 3 crocodiles clips (red, blue, black), 2 CAT IV 1,000 V test probes (red/black) for voltage measurements, 1 blue lead with rear connection, 1 mains power cable 2 m long, DataView software, 1 optical / USB communication lead, 1 C.A 6550 operating manual in 5 languages on CD-ROM and 5 specification labels (1 per language).
