Each Chauvin clamp-on earth resistance tester is delivered in a carrying case with one 9V battery and a user’s manual.
Chauvin Part No: P01122013

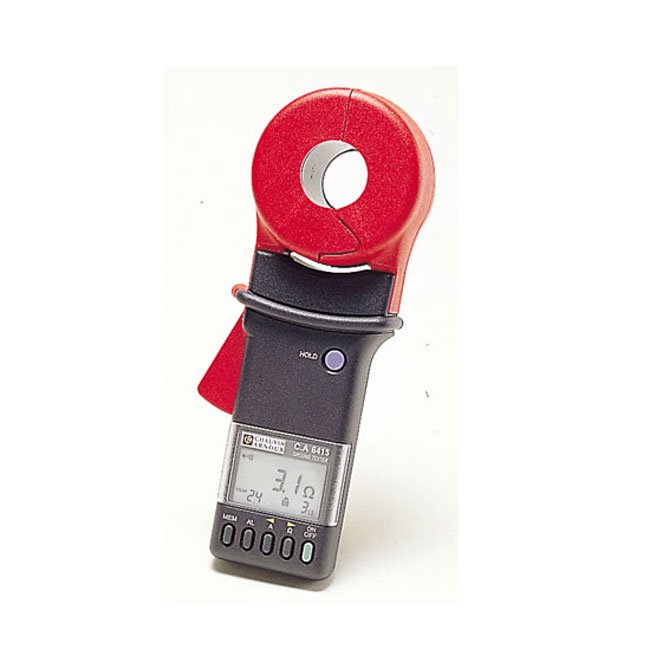

The ideal measuring instrument for parallel earth networks, the C.A 6415 earth clamp is ultra-fast and safe; it not only tests earth loops quickly but also measures leakage current discharging into the earth.
Chauvin Arnoux CA6415 Earth Clamp Features
- Resistance: 0.10Ω to 1200Ω (7 cal.).
- RMS leak current: 1mA to 30.00A (3 cal.).
- Clamping diameter: 32mm.
- Alarm threshold adjustable from 1Ω to 199Ω.
- Memory capacity: 99 measurements.
- Measuring frequency: 2400Hz.
- Autotest.
- Battery state indication.
- Electrical safety: EN 61010 cat.III 150V.
- Dimensions: 235 x 100 x 55 mm.
- Weight: 1kg.
- Chauvin Arnoux CA6415 Warranty: 1 year.
Included Accessories:
Carrying case, 9 V battery and a C.A6415 user’s manual.
