Fluke Networks FIBR-1-SHOTPRO Service Provider Fiber Troubleshooter

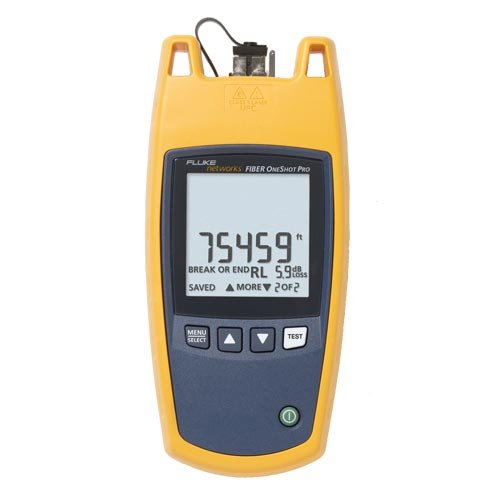

Fiber OneShot PRO takes the complexity out of singlemode fiber testing by analyzing fiber links and measuring faults up to 15 miles in less than five seconds. Whether you are troubleshooting FTTx, Hybrid Fiber Coax (HFC), fiber links between Central Offices, or working on regional or rural access networks, Fiber OneShot PRO is your first response to fiber trouble. The simple, one-button test feature means no training and can cut the average job time by 30 percent. This new class of tester fills the gap between a VFL and OTDR because it easily and quickly locates lossy connections, high-loss faults and breaks in a singlemode fiber network. This frontline fiber troubleshooter is an essential tool for anyone working with singlemode fiber.

Fluke Networks FIBR-1-SHOTPRO Specification
Operating temperature
(with the battery)
0ºC to 50ºC
Non-operating temperature -20ºC to 60ºC
Operating relative humidity (without condensation) 95% (10ºC to 35ºC)
75% (35ºC to 40ºC)
uncontrolled <10ºC
Vibration Random, 5 Hz to 500 Hz,
MIL-PRF-28800F CLASS 2
Shock 1 meter drop test
Altitude 9,842 feet/3,000 metres
EMC EN 61326-1:2004
Battery type 2 AA alkaline batteries (no battery charger)
Battery life More than 1,500 tests (typical)
Laser safety Class 1 CDRH
Complies to EN 60825-2
LCD type Backlit black and white (segments)
Index of refraction range 1.45 to 1.5 (factory default is 1.468)
Auto turn off Automatically turns off after 5 minutes if no keys are pressed.
Factory calibration interval None
Output wavelengths 1550 nm ± 20 nm at 25˚C
Laser classification Class 1 CDRH Complies to EN 60825-2
Maximum distance 75,459 feet or 23,000 metres
Distance Accuracy ± (1 m + 0.1% x length) for reflective incidents 1
± (3 m + 0.1% x length) for non-reflective incidents2
Testing speed 5 seconds typical testing time
Connector Removable/cleanable SC adapter, UPC polish
Fiber types tested 9/125 μm single mode
Detection of reflective incidents 3 -45 dB default threshold (user-selectable: -24 dB to -62 dB in 1 dB increments)
Maximum reflectance measurement -24 dB
Detection of loss incidents4 1.5 dB default threshold (user-configurable from 0.5 dB to 6.1 dB in 0.1 dB increments)
Bulkhead quality If no fiber is attached or if the connector is dirty, the troubleshooter displays 0 m or 0 ft.
Live fiber detection Detects optical signals from 1250 nm to 1625 nm and shows ACTIVE LINE if a signal is there. Looks for a signal every 3 seconds after the first detection. +7 dB maximum input power.
Certifications and compliance Conforms to relevant European Union directives
Conforms to relevant Australian standards
Listed by the Canadian Standards Association
Conforms to FCC Rules, Part A Class A CSA C22.2 No. 61010.1.04
1. ± user-configurable Index of Refraction (IOR) error ± the incident location error.
2. ± user-configurable Index of Refraction (IOR) error ± the incident location error.
3. Detects the location of an incident that has a reflectance larger than -62 dB. Detects incidents >2 m after the bulkhead connector when the bulkhead reflectance is <35 dB. Detects incidents >3 m after an incident when the incident reflectance is <35 dB.
4. Detects incidents >10 m after the bulkhead connector or any prior incident when the bulkhead reflectance is <-35 dB and the reflectance of any prior incident is <-35 dB. The maximum link loss prior to the incident is <7 dB.
