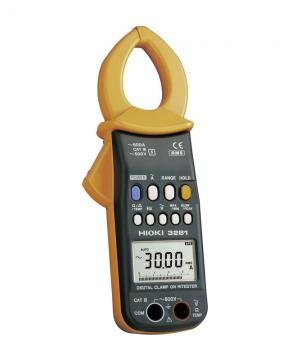

Hioki Digital- Clamp on HiTester 3281, 3282

600A and 1000A AC Load Current Meters and Multifunctional Testing and Distorted Waveforms

Hioki clamp on meters are best-in-class measuring devices incorporating Hioki’s expertise in current sensing technology. The 3281 and 3282 are True RMS clamp meters measuring up to 600A and 1000A load currents, and are housed in a rugged body for long use.

• Choose from two models to measure current up to 600A or 1000A
• Multi-functional testing of AC current, voltage, frequency, resistance and wave peak value
• Non-fuse type protects up to 600 V AC

■ Basic specifications (Accuracy guaranteed for 1 year, or opening and closing of the clamp sensor 10,000 times)

  3281 3282
AC current 30.00 to 600 A, 3 ranges (40 Hz to 1 kHz, True RMS),
Basic accuracy: ±1.0 % rdg. ±5 dgt.
30.00 to 1000 A, 3 ranges (40 Hz to 1 kHz, True RMS),
Basic accuracy: ±1.0 % rdg. ±5 dgt.
AC voltage 300.0/ 600 V, (40 Hz to 1 kHz, True RMS)
Basic accuracy: ±1.0 % rdg. ±3 dgt.
Crest factor 2.5 or less (1.7 at 600 A, 1.7 at 600 V) 2.5 or less (1.7 at 1000 A, 1.7 at 600 V)
Monitor, Analog output N/A
Frequency 30.0 Hz to 1000 Hz, Basic accuracy: ±0.3 % rdg. ±1 dgt.
Resistance, Continuity check 1000 Ω/ 10.00 kΩ, Basic accuracy: ±1.5 % rdg. ±5 dgt.,
Continuity: Beep sound at 30 Ω or less
Other functions Current wave peak value, Voltage wave peak value, Distortion check (Crest factor 1.00 to 5.00), Maximum/ Minimum/ Average value record function, Data hold, Auto power off
Display LCD, Max. 3000 dgt., Display refresh rate: 4 times/s (FAST), 1 time/3s (SLOW), 4 times/s (bar graph)
Power supply Stacked manganese battery (6F22) ×1, Continuous use: 45 hours
Core jaw dia. φ 33 mm (1.30 in) φ 46 mm (1.81 in)
Dimensions and mass 62 mm (2.44 in) W × 218 mm (8.58 in) H × 39 mm (1.54 in) D, 350 g (12.3 oz) 62 mm (2.44 in) W × 230 mm (9.06 in) H × 39 mm (1.54 in) D, 400 g (14.1 oz)
Accessories Test Lead L9207-10 ×1, Instruction manual ×1, Carrying Case 9399 ×1, Hand strap ×1, Stacked manganese battery (6F22) ×1
